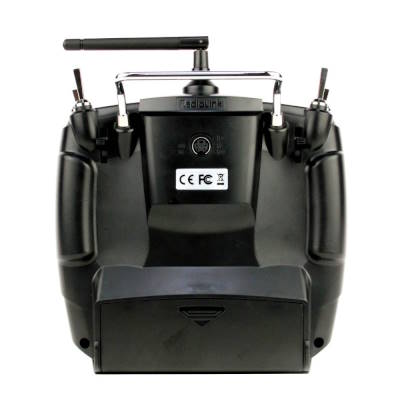

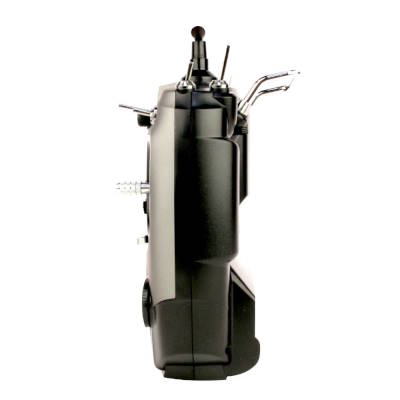

RadioLink AT9S Pro 2.4GHz 10-Channel Transmitter with Receiver

Product Description

An intuitive, 10-channel, 15 model memory, 2.4GHz, intermediate radio system for fixed-wing aircraft, helicopters, gliders and multirotors

RadioLink may well be a name that’s new to you but, rest assured, the protocol and the brand’s assured reliability is anything but. 10 years on the market and with an exponentially growing core of satisfied users this is a radio system that you’ll not only love for its features and flexibility but one you’ll grow to adore for its comfort, ease of use and solid dependability. And we haven’t even mentioned the price yet! With a range of transmitters covering everything from beginner to expert, standard features that’ll raise an enlightened eyebrow and receiver prices that’ll have you reaching for your wallet, RadioLink has been radio modelling’s the best kept secret of recent times… but not anymore!

An updated version of the popular AT9, the AT9S, 2.4GHz mid-range, telemetry capable transmitter now has 10 channels and, like its predecessor has been designed with a furure-proof feature-set to suit the intermediate model pilot with an expanding hangar and the need for a transmitter with an all-encompassing capability. Equipped with FHSS & DSSS frequency-hopping spread spectrum protocol you can be assured of a superior transmission rate, enhanced interference rejection and the peace of mind that comes with a rock-solid full range transmission. But it’s better than that; if you’re a regular club flyer a quick look at the specification will confirm that, actually, this is all the transmitter you’ll ever need. Moreover, with amazingly competitive receiver pricing you’ll realise that you really can afford to conveniently grow, or even re-equip, your fleet. Take a look at the full feature list and make special note of its intuitive programming, colour LCD, telemetry features, wireless trainer link capability and dashing good looks.

Key Features

10 Channels.

15 Model Memory.

Colour LCD.

DSSS & FHSS spread spectrum protocol.

Rx battery and RSSI (Receiver Signal Strength Indicator) telemetry as standard.

Mode change capable.

Wide (7.4 to 15V) voltage range input.

Tx battery reverse polarity protection.

Updatable firmware via micro USB port.

4096 bit resolution.

Tx and Rx low battery voltage warning (as standard).

Motor battery voltage warning (with optional PRM-01 sensor).

GPS telemetry (with optional TS100 sensor).

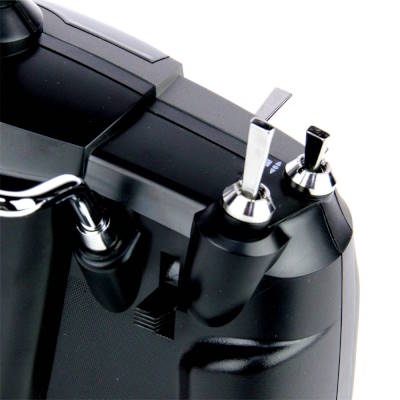

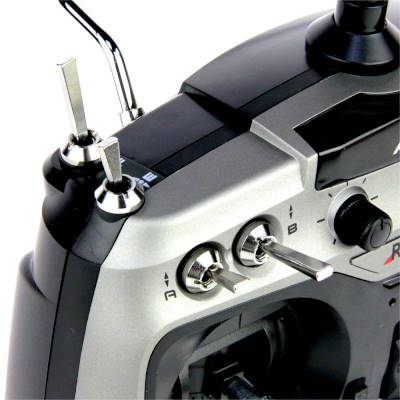

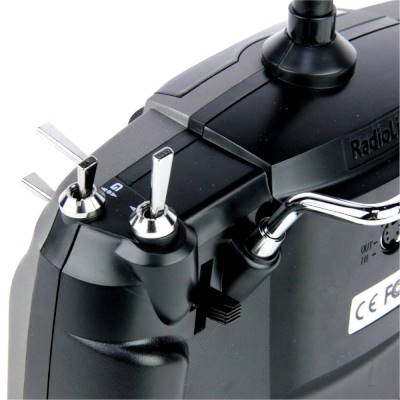

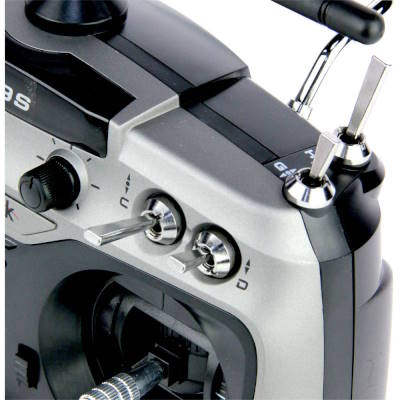

4 x two-position, 3 x three-position and 1 x return switch.

2 x proportional slider controls.

Wireless trainer compatibility (with optional R8FM module).

Intuitive programming.

Sturdy metal carry handle.

Digital trims.

Comfortable ergonomic design.

S-BUS compatible.

Vibration alarm.

What's in the Box

1x AT9S 2.4GHz 10-channel transmitter.

1x R9DS 9-channel receiver.

1x Throttle stick spring retainer.

1x Neck Strap.

Needed to Complete

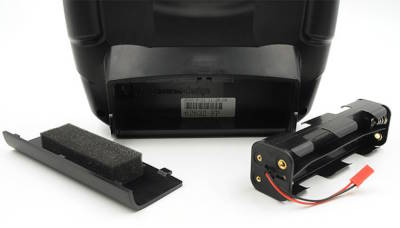

8 x AA-size batteries for the transmitter.

Model categories catered for

Glider (one aileron plus one flap)

Glider (two aileron plus one flap)

Glider (two aileron plus two flap)

Fixed-wing power

Helicopter

Multirotor

Special functions

End Point Adjustment

Sub Trim

Servo Reverse

Dual Rate

Exponential

Throttle Cut

Fail-safe

Three timers

Trainer Function

Servo Monitor

Trim Step

Idle Down

Flaperon

8 programmable mixers

Flap Trim

Aileron Differential

Air Brake

Elevator / Flap Mixing

Snap Roll

V-Tail Mixing

Elevon Mixing

Throttle Curve

Throttle Delay

Gyro Sense

Servo Speed

Ailevator Mixing

Revolution Mix

Hover Throttle

Hover Pitch

High / Low Pitch

Governor

Throttle Mix

Swash Ring

Camber Flap

Camber Mix

Butterfly

Butterfly / Elevator Mix

Spoiler Mix

Flight Conditions

Specification:

Length (mm): 180

Height (mm): 213 (aerial folded)

Width (mm): 63 (minus carry handle)

Weight (g): 828
